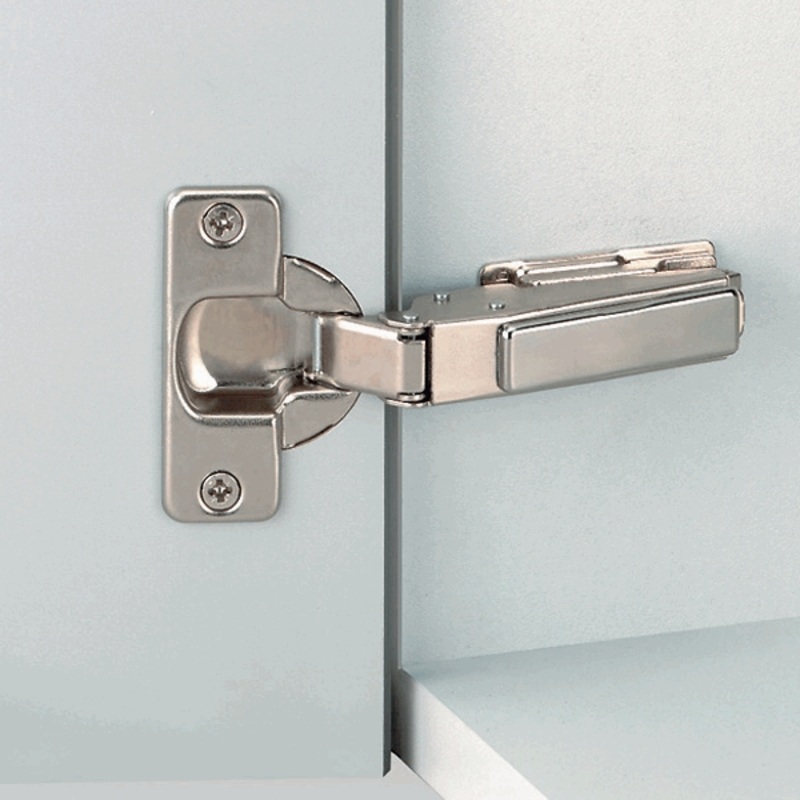

Grass 146.322.54.0015 110 Degree Nexis Hinge, Self-Close, Full Overlay, Dowel

Description

• Grass America’s Nexis and Nexis Impresso (toolless cabinet door fastening design) hinges are designed for frameless and face frame cabinets
• Nexis 110 degree(s) opening hinges have: – Cup depths of 11mm (Nexis) and 11.5mm (Nexis Impresso) – Hinge cup edge drilling distance of 3mm to 7mm – Single screw side-to-side adjustment of +1mm to -3mm – Boring patterns of 42mm, 45mm and 48mm
• Available in three cup fastening designs: “Screw-on” with two #6 x 5/8″ screws (not included), “Doweled” and Tool-less “Impresso”
• Screw-on and Doweled hinges feature stamped steel cup,

toolless “Impresso” hinges feature die-cast steel cup and

closing flap with all metal construction for positive and

secure attachment to cabinet door

• Available in self-closing and free swinging versions
• Nexis hinges are compatible with Nexis hinge soft-closing adapters
• Nexis hinges are designed to work with the Grass mounting plates

1. Manufacturer

   GRASS AMERICA

2. SKU

   10755684

3. Manufacturer’s Part

   F015072810236

4. Weight

   0.149 lbs

5. Sold in Multiples of

   1

6. Priced By

   Each

7. Preorder

   N

8. Cabinet Type

   Frameless Face Frame

9. Degree of Opening

   110

10. Overlay

    Full Overlay

11. Closing Type

    Self-Closing

12. Hinge Cup Mounting How the cup is attached to the cabinet

    Dowels: Press-In

13. Boring Pattern Spread How far apart the mounting holes in the cup are spaced

    48mm

14. Application

    Standard

15. Configuration

    Hinge and Plate sold separately

16. Arm Style

    Straight

17. Cup Diameter

    35mm

18. Cup Depth

    11mm

19. Max Overlay

    20mm

20. Max Door Thickness

    22mm

21. Overlay Mfg Definition

    Full

22. Product Type

    Standard European Hinge

23. Product Finish

    Nickel

24. Includes

    (1) Hinge
